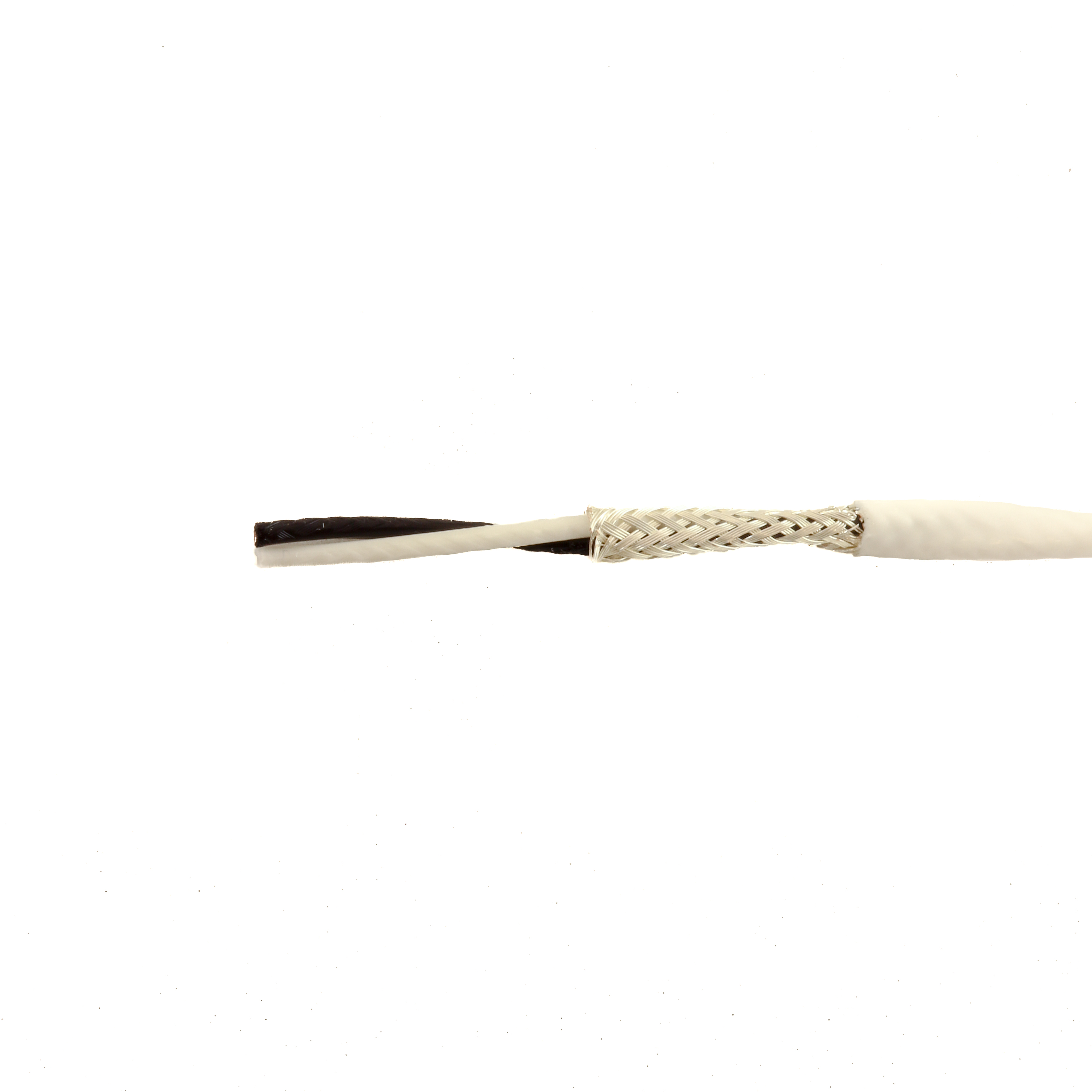

High Low Temperature Cable18RC2S06

Name: 18RC2S06
Brand: Alpha Wire

Download RoHS Certificate

High Low Temperature Cable18RC2S06

18RC2S06

Download RoHS Certificate

Alpha Wire’s high/low temperature cables are available for temperatures ranging from -55°C to 200°C. Our expertise in high-temperature materials such as teflon will help you select the right cable to meet the demanding high-temperature requirements for control and power applications.

Request Samples View Pricing Add to Cart Find a Stocking Distributor

View Pricing View Pricing Find a Stocking Distributor

Diameter ("in")

1) Component 1

2 x 1 COND

a) Conductor

18 (19/30) AWG SPC

0.050

b) Insulation

0.011" Wall, Nom. PTFE

0.072

(1) Color(s)

Cond	Color	Cond	Color	Cond	Color
1	WHITE	2	WHITE/BLUE

2) Cable Assembly

2 Components Cabled

a) Twists

6.0 Twists/ft. (min.)

3) Shield

SPC BRAID Shield, 85% Coverage (min.)

4) Jacket

0.010" Wall, Nom., PTFE Tape

0.182 (0.190 max.)

a) Color(s)

WHITE

1) Other
a) Component 1	SAE-AS22759/11
b) Overall	NEMA WC27500 Type RC
2) CE	EU Low Voltage Directive 2006/95/EC

1) CE: EU Directive 2011/65/EU(RoHS2)
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No exemptions are required for RoHS Compliance on this item. Refer to the RoHS Certificate of Compliance for more detail.
2) REACH Regulation (EC 1907/2006)
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.

Physical & Mechanical Properties
1) Temperature Range	-55 to 200°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	30 lbs. max.
Electrical Properties	Engineering purposes only
1) Voltage Rating	600 V_RMS
2) Capacitance	31 pf/ft. @1 kHz, Nominal Conductor-to-Conductor
3) Ground Capacitance	56 pf/ft. @1 kHz, Nominal
4) Characteristic Impedance	48 Ω
5) Inductance	0.16 µH/ft., Nominal
6) Conductor DCR	5.6 Ω/1000ft. @20°C, Nominal

Packaging	Flange x Traverse x Barrel (inches)
a) 100 FT	6.5 x 2 x 1.9 Continuous Length
b) Bulk (made-to-order)	Quantity = 2500 ft.: 8 pieces max., 100 ft. min. length Quantity < 2500 ft.: 5 pieces max., 100 ft. min. length
	Spool dimensions may vary slightly.
