Coaxial Cable 9854C

Name: 9854C
Brand: Alpha Wire

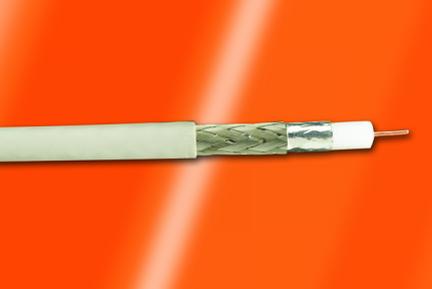

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Coaxial Cable 9854C

Part Number: 9854C

Download RoHS Certificate

Alpha Wire offers 50-, 75-, 93-, and 100-ohm coaxial, twinaxial, and triaxial cables in a wide range of insulation and jacket materials and rated for UL, CSA and military specifications.

We now also provide non-magnetic coaxial cable options 9849 and 9851, which provide better signal transmission with minimal distortion while handling higher frequencies.

Looking for a space-saving option? We also offer Micro Coaxial cable, ideal for customers looking for uninterrupted signal transmission in compact spaces.

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

Diameter ("in")

1) Component 1

3 x 1 PAIR

a) Conductor

28 (7/36) AWG TC

0.015

b) Insulation

0.0085" Wall, Nom. Polypropylene (PP)

0.033

(1) Color(s)

Pair	Color	Pair	Color	Pair	Color
1	WHITE-GRAY	2	YELLOW-ORANGE	3	GREEN-BLUE

c) Pair

2/Cond Cabled Together

(1) Twists:

12.0 Twists/ft. (min.)

Individually Applied

d) Shield

Alum/Mylar Tape, 25% Overlap (min.)

(1) Foil Direction

Foil Facing Out

2) Component 2

1 X 1 PAIR

a) Conductor

24 (7/32) AWG TC

0.024

b) Insulation

0.010" Wall, Nom. PVC, Semi-Rigid

0.044

(1) Color(s)

Pair	Color	Pair	Color	Pair	Color
1	BLACK-RED

c) Pair

2/Cond Cabled Together

(1) Twists:

9.6 Twists/ft. (min.)

Individually Applied

d) Shield

Alum/Mylar Tape, 25% Overlap (min.)

(1) Foil Direction

Foil Facing Out

3) Cable Assembly

4 Components Cabled

a) Twists

4.0 Twists/foot (min.)

b) Drain Wire

24 (7/32) AWG TC under core wrap common to pairs

c) Core Wrap

Clear Mylar Tape, 25% Overlap (min.)

4) Shield:

A/P/A Tape, 25% Overlap (min.)

a) Braid

#36 AWG TC,90% Coverage (min.)

5) Jacket

0.032" Wall, Nom., PVC

0.250 (0.265 max.)

a) Color(s)

SLATE

b) Print

ALPHA WIRE-* P/N 9854C
IEEE 802.3 TRANSCEIVER CABLE 3PR28 1PR24
SHIELDED 75C (UL) CM OR AWM 2919 LOW VOLTAGE
COMPUTER CABLE OR C(UL) CMG FT4
CE ROHS
* = Factory Code
Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.

Applicable Specifications

1) UL	CM	75°C
	AWM/STYLE 2919	80°C / 30 V_RMS
2) CSA International	C(UL) TYPE CMG	75°C
	FT4
3) CE	EU Low Voltage Directive 2006/95/EC

Environmental

1) CE: EU Directive 2011/65/EU(RoHS2)
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011. No exemptions are required for RoHS Compliance on this item. Refer to the RoHS Certificate of Compliance for more detail.
2) REACH Regulation (EC 1907/2006)
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
3) California Proposition 65	Outer surface materials used in manufacturing this part meet the requirements of California Proposition 65.

Properties

Physical & Mechanical Properties
1) Temperature Range	-20 to 80°C
2) Bend Radius	10X Cable Diameter
3) Pull Tension	18.8 lbs. max.
Electrical Properties	Engineering purposes only
1) Voltage Rating	300 V_RMS
2) Component 1
a) Characteristic Impedance	78 Ω +/- 5
b) Mutual Capacitance	19.7 pf/ft. @1 kHz, Nominal
c) Velocity of Propagation	66 %
d) Conductor DCR	65 Ω/1000f.t @20°C, Nominal
e) Attenuation, Max dB/100ft	1.7 @1 MHz
	3.5 @5 MHz
	4.8 @10 MHz
3) Component 2
a) Conductor DCR	25 Ω/1000ft. @20°C, Nominal
4) OA Shield DCR	3.2 Ω/1000ft. @20°C, Nominal

Other

Packaging	Flange x Traverse x Barrel (inches)
a) 1000 FT	12 x 12 x 3.5 Continuous Length
	Spool dimensions may vary slightly.
