Kits FIT-KIT-221BK

Name: FIT-KIT-221BK
Brand: Alpha Wire

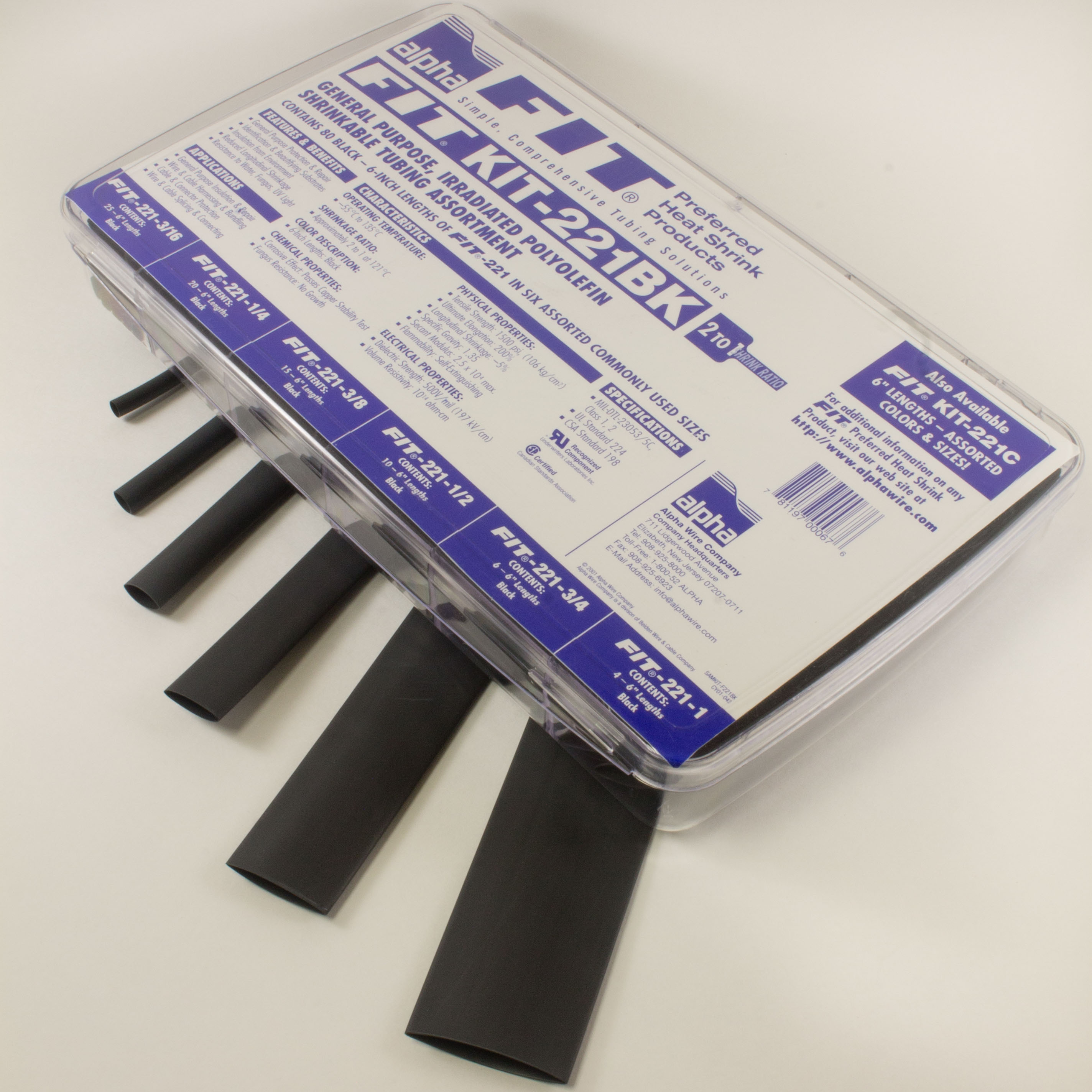

This picture is representative only and may not match the specific configuration of the product listed on this page. Please refer to the product specifications for more information on this part number and its exact configuration.

Download RoHS Certificate

Kits FIT-KIT-221BK

Part Number: FKIT221BK

Download RoHS Certificate

Alpha Wire FIT® Kits are great resources for use in R&D labs, engineering development, and maintenance departments. These kits provide heat-shrink tubing is various sizes and colors in pre-cut pieces up to 6".

Additionally, our FIT-MGKIT-1 comes with a FIT MINIGUN so you can have everything you need to test our product at your fingertips. We offer our kits in a variety of colors, sizes, shrink ratios and materials.

FIT Kit 1.2.7

FIT kit MG

Fit Kits 221

FIT105 FIT221MS

FIT321MS

Request Samples View Pricing Add to Cart Find a Stocking Distributor

Construction

1) Tubing Type

Heat Shrinkable Tubing (Assortment)

2) Tubing Material

Cross Linked Polyolefin

3) Color(s)

BLACK

Part Number	Minimum Supplied ID (In)	Maximum Recovered ID (In)	Nomiminal Recovered Wall Thickness (In)	Quantity
FIT-221-3/16	0.187	0.093	0.020	25 x 6 IN
FIT-221-1/4	0.250	0.125	0.025	20 x 6 IN
FIT-221-3/8	0.375	0.187	0.025	15 x 6 IN
FIT-221-1/2	0.500	0.250	0.025	10 x 6 IN
FIT-221-3/4	0.750	0.375	0.030	6 x 6 IN
FIT-221-1IN	1.000	0.500	0.035	4 x 6 IN

Applicable Specifications

1) UL	Standard 224
2) CSA International	Standard 198
3) Other	AMS-DTL-23053/5 Class 1

Environmental

1) EU Directive 2011/65/EU(RoHS2):
	All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
3) California Proposition 65:	The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.

Properties

Physical & Mechanical Properties
1) Temperature Range	-55 to 135°C
2) Shrink Ratio	Approximately 2:1
3) Full Recovery Temperature	121°C
4) Minimum Shrink Temperature	90°C
5) Tensile Strength	1500psi, Min	ASTM D638
6) Elongation	200%, Min	ASTM D638
7) Low Temperature Flex(-55°C)	no cracking	AMS-DTL-23053
8) Heat Shock(250°C,4hrs)	no cracking	AMS-DTL-23053
9) Secant Modulus	2.5x10⁴ psi, Min	ASTM D882
10) Longitudinal Change	+/-5%	AMS-DTL-23053
11) Specific Gravity	1.35, Max	ASTM D792
12) Shelf Life	5 Years @ 18 to 35°C
Electrical Properties
1) Dielectric Strength	500 V/mil, Min	ASTM D876
2) Volume Resistivity	1x10¹⁴ ohm-cm, Min	ASTM D876
Chemical Properties
1) Water Absorption	0.50%, Max	ASTM D570
2) Corrosion(0°C,16hrs)	no corrosion	AMS-DTL-23053
3) Fluid Resistance(23°C,24 Hrs)	1000 PSI, Min	AMS-DTL-23053
4) Fungus Resistance	Pass	AMS-DTL-23053
5) Vacuum Outgassing - CVCM	0.10%, Max	ASTM E595
6) Halogen Free	No
7) Lead Free	Yes
