Part # Type  Shielding  Voltage  AWG  # of Elements  Jacket Diameter  Applicable Specifications
SF61114CY Multi-Conductor  FOIL/BRAID  600  14  0.432  CSA AWM I/II A/B, CSA FT4, UL 1277 Type TC-ER, UL OIL RES I, UL SUN RES, UL Type WTTC
(Ctrl+Click if PDF doesn't appear)
 Diameters (In)
1) Component 1 4 X 1 COND
a) Conductor 14 (41/30) AWG Tinned Copper 0.070
b) Insulation 0.016" Wall, Nom. PVC/ 0.005" Wall NYLON 0.112
(1) Print ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND
INVERTED
(2) Color Code Alpha Wire Color Code KX
Cond Color Cond Color Cond Color
1 GREEN/YELLOW 3 BLACK#2
2 BLACK#1 4 BLACK#3
2) Cable Assembly 4 Components Cabled
a) Twists: 4.0 Twists/foot (min)
b) Core Wrap REMAY Tape, 25% Overlap, Min.
3) Shield: A/P/A Tape, 25% Overlap, Min.
a) Drain Wire 20 (19/32) AWG Tinned Copper
b) Braid Tinned Copper,85% Coverage, Min.
4) Jacket 0.055" Wall, Nom.,TPE0.432+/- 0.020
a) Color(s) ORANGE
b) Jacket Separator Tissue Tape, 25% Overlap, Min.
c) Print ALPHA WIRE-* P/N SF61114CY 4C 14 AWG
THHN E324185 (UL) WTTC 90C 1000 VOLT OR (UL)
TC-ER 90C 600V OIL RES I/II SUN RES OR C(UL) CIC
CONTROL/TC 90C PVC/NYLON INS FT4 14 AWG
--- LLXXXXXX CSA AWM I/II A/B 90C 600V FT4
CE ROHS (DATE CODE) (SEQ FOOTAGE)
* = Factory Code
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
1) UL
a) Component 1 THHN 90°C / 600 VRMS
b) Overall TC 90°C / 600 VRMS
 EXPOSED RUN
 OIL RES I/II
 SUN RES
 WTTC 90°C / 1000 VRMS
2) CSA International AWM I/II A/B 90°C / 600 VRMS
 FT4
 C(UL) CIC CONTROL 90°C / 600 VRMS
 C(UL) TC 90°C / 600 VRMS
3) CE:EU Low Voltage Directive 2006/95/EC
1) EU Directive 2011/65/EU(RoHS2):
 All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
 This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
3) California Proposition 65:The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.
Physical & Mechanical Properties
1) Temperature Range-25 to 90°C(static), -5 to 90°C (dynamic)
2) Bend Radius 10X Cable Diameter
3) Pull Tension 147 Lbs, Maximum
4) Sunlight Resistance Yes
Electrical Properties(For Engineering purposes only)
1) Voltage Rating 600 VRMS
2) Capacitance 53 pf/ft @1 kHz, Nominal Conductor to Conductor
3) Ground Capacitance95 pf/ft @1 kHz, Nominal
4) Inductance0.17 µH/ft, Nominal
5) Conductor DCR2.8 Ω/1000ft @20°C, Nominal
6) OA Shield DCR1.66 Ω/1000ft @20°C, Nominal
PackagingFlange x Traverse x Barrel (inches)
a) 1000 FT 24 x 14 x 12 Continuous length
b) 500 FT 18 x 12 x 8 Continuous length
c) 100 FT 12 x 10 x 5 Continuous length
 [Spool dimensions may vary slightly]
Notes:
a) Suitable for use in Industrial Machinery per the requirements of NFPA-79

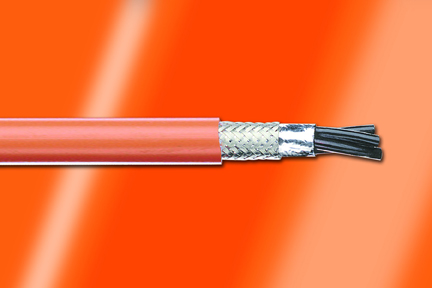

Alpha Wire's Series SF cables are designed specifically for servo motors and servo drives.  Series SF cable is the right choice if you need increased flexibility for your power servo applications.

Industrial Series SF Key features:

Power cable

  • 4-conductor power cable, with or without brake pair
  • 18 – 8 AWG
  • Thermoplastic elastomer jacket
  • SF Series offers increased flexibility
  • UL Type TC-ER (600V)
  • UL Type WTTC (1000V)
  • Sunlight resistant
  • UL Oil Res I/II

Control cable

  • 3 to 6 pairs for resolver applications
  • 9 conductors for encoder applications
  • 20 AWG
  • Polyolefin insulation
  • Thermoplastic elastomer jacket
