Part # Construction Type  RG Type  Impedance  Shielding  AWG  Stranding  Core Diameter  Jacket Diameter  Applicable Specifications
9888C COAX  Twinax  78  BRAID  22  7/30  0.056  0.184  CA Prop 65, CSA CMG, CSA FT4, UL AWM 2726, UL CM
(Ctrl+Click if PDF doesn't appear)
 Diameters (In)
1) Component 1 2 X 1 COAX
a) Conductor 22 (7/30) AWG TC 0.030
b) Insulation 0.013" Wall, Nom. Polyethylene, High Density 0.056
(1) Color(s)
Cond Color Cond Color Cond Color
1 WHITE 2 BLUE
2) Cable Assembly 2 Components Cabled
a) Twists: 6.9 Twists/foot (min)
3) Shield TC BRAID Shield,85% Coverage, Min.
4) Jacket 0.027" Wall, Nom.,PVC0.184 (0.189 Max.)
a) Color(s) APPLE SMOKE SLATE
b) Print ALPHA WIRE-* P/N 9888C 2C 22 AWG
SHIELDED (UL) TYPE CM OR AWM 2726
C(UL) CMG FT4 CE ROHS
* = Factory Code
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
1) UL CM 60°C
 AWM/STYLE 2726 60°C / 30 VRMS
2) CSA International CMG 60°C
 FT4
3) CE:EU Low Voltage Directive 2006/95/EC
1) CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3):
 This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
 This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
3) California Proposition 65:Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information.
Physical & Mechanical Properties
1) Temperature Range-20 to 60°C
2) Bend Radius 10X Cable Diameter
3) Pull Tension 11 Lbs, Maximum
Electrical Properties(For Engineering purposes only)
1) Voltage Rating 300 VRMS
2) Characteristic Impedance 78 Ω +/- 10%
3) Mutual Capacitance 19.7 pf/ft @1 kHz, Nominal
4) Velocity of Propagation 66 %
5) Conductor DCR 16.3 Ω/1000ft @20°C, Nominal
6) OA Shield DCR 5 Ω/1000ft @20°C, Nominal
7) Voltage Withstanding 3 kV, Minimum
8) Insulation Resistance 300 MΩ/MFt (Est.)
9) Attenuation, Max dB/100ft 0.8 @ 1 MHz
  9.5 @ 100 MHz
  32 @ 1 GHz
PackagingFlange x Traverse x Barrel (inches)
a) 1000 FT 12 x 6 x 3.5 Continuous length
b) BOX 1000FT 9-1/2 EASY REEL: Continuous length
 [Spool dimensions may vary slightly]

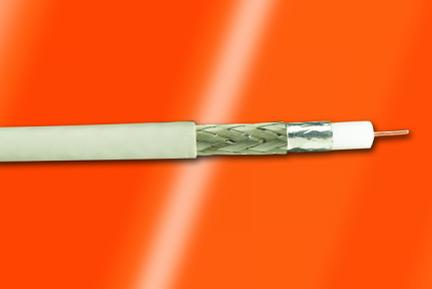

Alpha Essentials Coaxial & Micro Coaxial Cable:
