EcoFlex®️ PUR80155

Name: 80155
Brand: Alpha Wire

Download RoHS Certificate

EcoFlex®️ PUR80155

80155

Download RoHS Certificate

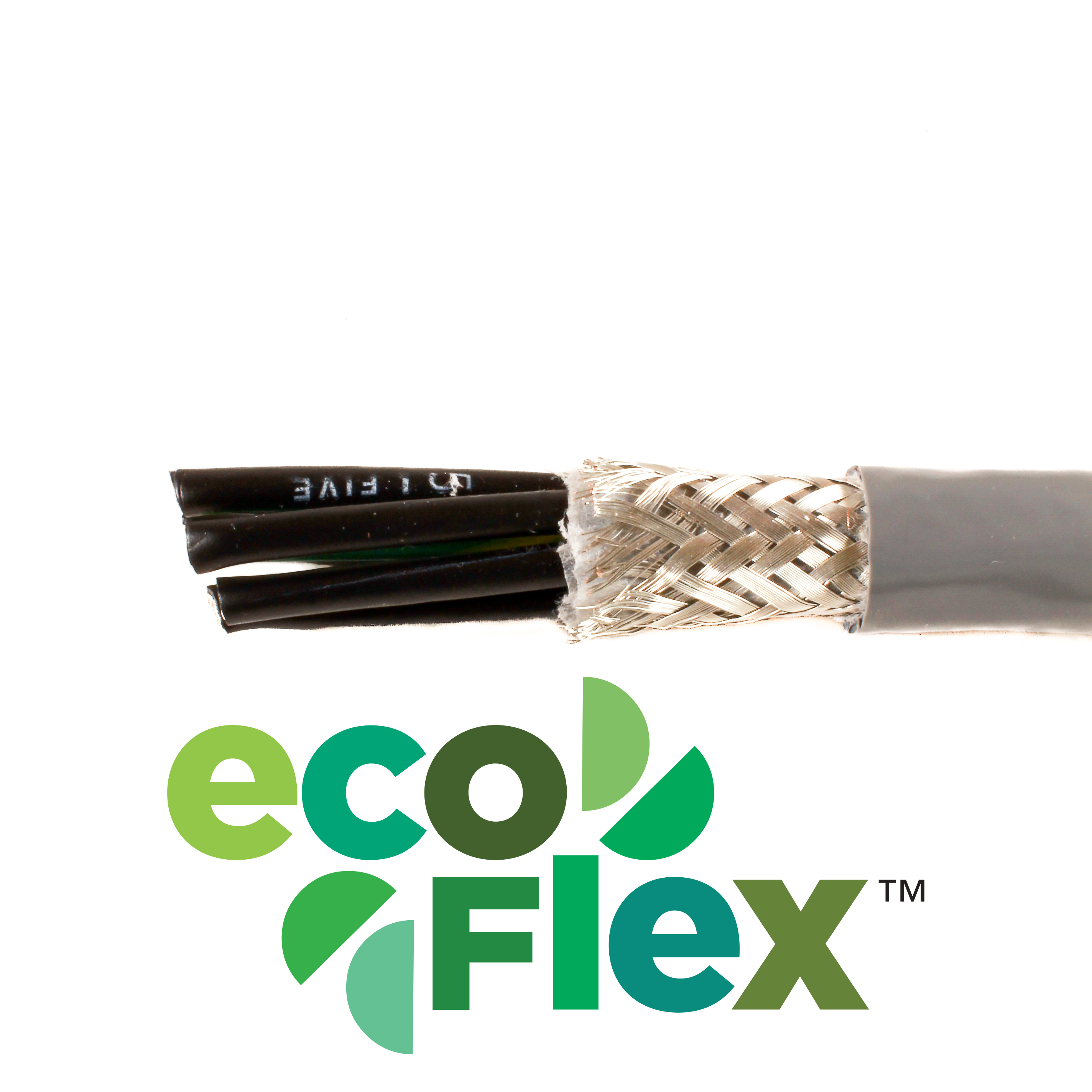

Get the abrasion, UV, and oil resistance of a tough zero-halogen Polyurethane jacket in a flex cable that’s up to 40% smaller and 44% lighter than other 600V continuous flex cables.

Zero Halogen, contains no heavy metals or phthalates
PUR jacket, mPPE insulation
8M+ flex life cycles
finely stranded tinned copper conductors, class 6
Up to 40% smaller and 44% lighter than standard 600V PUR continuous flex cables
UL Oil Res I
UL Sunlight Resistant
Operating temperature -50C to +90C (static) and -40C to +80C (dynamic)
Bend Radius 4X (static) and 6X (dynamic)

With its rugged PUR jacket and finely stranded conductors, EcoFlex PUR cable provides 8+ million flex cycles in tough application conditions—while saving space and reducing weight. And with a wide range of conductor sizes, conductor counts, and shielded and unshielded versions, you can find the cable you need.

Request Samples View Pricing Add to Cart Find a Stocking Distributor

View Pricing View Pricing Find a Stocking Distributor

Diameters (In)

1) Component 1

12 X 1 COND

a) Conductor

14 (105/34) AWG Tinned Copper

0.070

b) Insulation

0.013" Wall, Nom. MPPE

0.096

(1) Print

ALPHANUMERIC NUMBERS - 1-ONE ALTERNATING AND
INVERTED

(2) Color Code

Alpha Wire Color Code KX

Cond	Color	Cond	Color	Cond	Color
1	GREEN/YELLOW	5	BLACK#4	9	BLACK#8
2	BLACK#1	6	BLACK#5	10	BLACK#9
3	BLACK#2	7	BLACK#6	11	BLACK#10
4	BLACK#3	8	BLACK#7	12	BLACK#11

2) Cable Assembly

12 Components Cabled

a) Twists:

2.5 Twists/foot (min)

b) Orientation:

Components to be arranged from INSIDE LAYER to OUTSIDE LAYER

c) Core Wrap

Nonwoven Polyester Tape, 25% Overlap, Min.

3) Shield

Tinned Copper BRAID Shield,85% Coverage, Min.

4) Jacket

0.032" Wall, Nom.,Polyurethane, Zero Halogen (ZH)

0.501+/- 0.017

a) Color(s)

SLATE

b) Jacket Separator

Tissue Tape, 25% Overlap, Min.

c) Print

ALPHA WIRE-* P/N 80155 12C 14 AWG
RU AWM STYLE 21959 90C 600V SUN RES 60C OIL OR
CRU AWM I/II A/B 90C 600V FT2 --- IEC EN 60332-1/2
CE ROHS (SEQ FOOTAGE)
* = Factory Code

1) UL
a) Component 1	AWM/STYLE 11231	105°C / 600 V_RMS
b) Overall	AWM/STYLE 21959	90°C / 600 V_RMS
	60C OIL
	SUN RES
2) CSA International	C(RU) AWM I/II A/B	90°C / 600 V_RMS
	FT2
3) IEC
a) Component 1	EN 60228 Conductors, Class 6
b) Overall	EN 60754-1 Acid Gas Generation
	EN 60754-2 Acid Gas Generation
	EN 60332-1 Flame Behavior
	EN 60332-2 Flame Behavior
4) Other	NFPA 79 - 2015 Compliant
5) CE:	EU Low Voltage Directive 2014/35/EU

1) CE: EU Directive 2011/65/EU(RoHS2), EU Directive 2015/863/EU (RoHS3):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011 and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item.

Physical & Mechanical Properties
1) Temperature Range	-50 to 90°C(static), -40 to 80°C (dynamic)
2) Bend Radius	4X Cable Diameter(static), 6X Cable Diameter(dynamic)
3) Pull Tension	407 Lbs, Maximum
4) Sunlight Resistance	Yes
Electrical Properties	(For Engineering purposes only)
1) Voltage Rating	600 V_RMS
2) Capacitance	40 pF/ft @1 kHz, Nominal Conductor to Conductor
3) Ground Capacitance	72 pF/ft @1 kHz, Nominal
4) Inductance	0.15 μH/ft, Nominal
5) Conductor DCR	2.8 Ω/1000ft @20°C, Nominal
6) OA Shield DCR	1.54 Ω/1000ft @20°C, Nominal

Packaging	Flange x Traverse x Barrel (inches)
a) 100 FT	18 x 9 x 8 Continuous length
b) Bulk(Made-to-order)
	[Spool dimensions may vary slightly]
