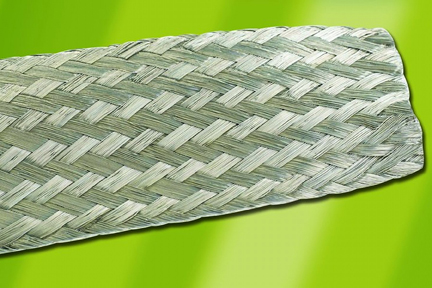

Alpha Wire braid is an exceptional, low resistance option to create a point-to-point ground strap. In retrofit applications, braid is an ideal way to install additional shielding to your cable.
Try our newest addition to FIT family, Brass Braid Sleeving. Featuring tough, tubular expandable sleeving and protection from harmful microoganisms, Alpha Wire's Brass Braid Sleeving provides a high-end option for wire management needs. Brass Braid Sleeving protects cables in a multitude of environments, including medical, food and beverage and semiconductor.
|a) Material||Tinned Copper, per ASTM B-33 and CID-A-A-59551, latest revision|
|2) Braid Data
|a) Nominal Dimensions
||.250 x .030 Inches
|b) AWG of Ends
|c) Number of Carriers
|d) Nominal Percent Coverage
|e) Total Number of Ends
|f) Approx. Equiv. AWG
|g) Approx. Ampacity
|h) Federal Spec Number
|i) DC Resistance, Nominal
|| 3.49 Ohms/1000 ft.
1) DSCC CID A-A-59569C
|1) EU Directive 2011/65/EU(RoHS2):|
|This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU (RoHS3) of 4 June 2015. No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C
|2) REACH Regulation (EC 1907/2006):|
|This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
|3) California Proposition 65:||Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information.
|a) 100 ft.||2.75 x 1 x 1-1/8, Continuous|
|b) 500 ft.||9 x 4.5 x 3.5, 3 Pieces Max., 50 ft. Min. Length|
|c) 1000 ft.||12 x 6 x 3.5, 4 Pieces Max., 50 ft. Min Length|
|Spool size may vary slightly|
