Custom Cable Design with Alpha Wire

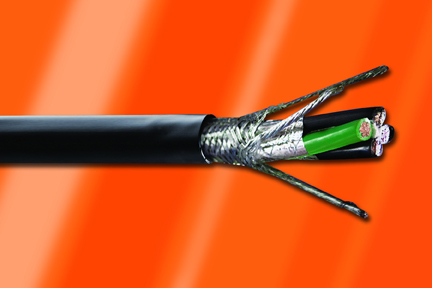

Xtra-Guard Flex Motor Supply Cable

The Right Cable, Just the Way You Want It

We understand that despite the breadth and depth of our product portfolio, sometimes you require a cable as unique as the application. We make it easy to configure a custom cable.

Download our full custom capabilities in a PDF

Utilize our Alpha Wire Cable Design Center to quickly and easily modify any standard Alpha cable specification to your own requirements.

Don't see the options you are looking for in our Cable Design Center?
Call us at 1-800-52 ALPHA so we can help create your custom cable.
Email us here with your custom design requirements


Conductors  Flexing
Configuration: Single, pairs, triads

Gauge: 48 to 4/0 AWG

Plating: Bare, tin, silver, nickel, gold

Materials: Tinsel Wire, Pure Silver, Stainless Steel Carbon Fibers,
Nitinol, High Strength Alloys, High Strand Conductors for Flexibility,
Other Alloys upon Request

Applications:  Rolling Flex
Bending Flex
Torsional Flex
Continuous Flex

Flex Cycles: Up to 20 Million

Ratings
Temperature: -80 to +200°C

Electrical: 30, 150, 300, 600, 1000V

Insulation/Jacket  Approvals
Material: PVC
PUR
Semirigid PVC
TPE
PP
PE
PFA
FEP
PTFE
ETFE
MPPE
Fluorosilicone
Silicone
Nylon
Neoprene
Thermoplastic Vulcanite
Melt-processible rubber
UL, CSA, CE, RoHS, Class VI, IEC

Mechanical/Environmental
Abrasion resistance, chemical resistance, direct burial,
oil resistance, sunlight resistance, UV resistance

Packaging
Reeled in small or large putups, cut to length, custom
printing, custom jacket colors

Other
Can design custom cables with lumens







Shielding
Application: Overall or individual conductors

Types: Foil, Braid, Spiral, Supra-Shield® Foil/Braid,
Spiral with copper, Aluminum/Mylar, Bare Copper,
Glass, Kevlar®, Silver Plated Copper, Tinned Copper,
High Strength Copper Alloys
