Construction
| | Diameters (In) |
| 1) Component 1 | 10 X 1 COND | |
| a) Conductor | 26 (7/34) AWG TC | 0.019 |
| b) Insulation | 0.010" Wall, Nom. PVC | 0.039 |
| (1) Color(s) | | |
| Cond | Color | Cond | Color | Cond | Color | | 1 | BROWN | 5 | GREEN | 9 | WHITE | | 2 | RED | 6 | BLUE | 10 | BLACK | | 3 | ORANGE | 7 | VILOET | | | | 4 | YELLOW | 8 | SLATE | | |
|
| 2) Cable Assembly | 10 Components assembled parallel. | 0.039 +/- 0.002 x |
| | | 0.390 +/- 0.020 |
Applicable Specifications
| 1) UL | AWM/STYLE 2713 | 80°C / 150 VRMS |
| | VW-1 | |
| 2) Military | | |
| a) Component 1 | MIL-DTL-16878/1 (Type B) | 105°C / 600 VRMS |
Environmental
| 1) EU Directive 2011/65/EU(RoHS2): |
| | All materials used in the manufacture of this part are in compliance with European Directive 2011/65/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for RoHS C of C. |
| 2) REACH Regulation (EC 1907/2006): |
| | This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. |
| 3) California Proposition 65: | The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |
Properties
| Physical & Mechanical Properties |
|---|
| 1) Temperature Range | -55 to 105°C |
| 2) Bend Radius | 10X Cable Diameter |
| 3) Pull Tension | 21.8 Lbs, Maximum |
| Electrical Properties | (For Engineering purposes only) |
|---|
| 1) Voltage Rating | 600 VRMS |
| 2) Capacitance | 28 pf/ft @1 kHz, Nominal Conductor to Conductor
|
| 3) Inductance | 0.2 µH/ft, Nominal
|
| 4) Conductor DCR | 41 Ω/1000ft @20°C, Nominal
|
Other
| Packaging | Flange x Traverse x Barrel (inches) |
| a) 100 FT | 11 x 0.5 x 3 Continuous length |
| | [Spool dimensions may vary slightly] |

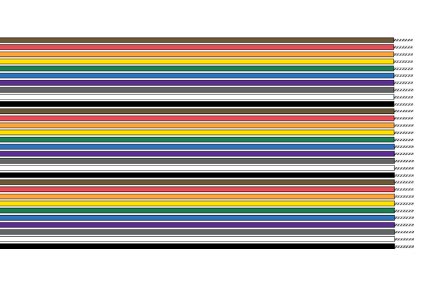

Alpha Wire offers a variety of ribbon cable that facilitate easier routing and termination, taking up less space than wire harness bundles. These cables are designed to safely carry more current than round harnesses of similar wire gauges and are easy to separate and route within circuit.
