Construction
| Product |

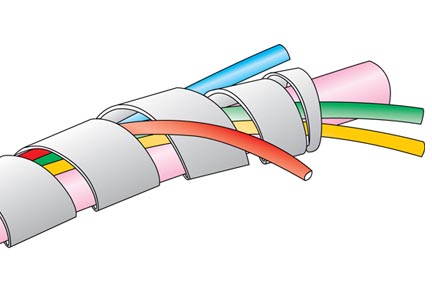

Spiral Wrap Tubing |
|
| Material |
Polyethylene |
|
| Color |
White |
|
| Flamability |
Flame Retardant |
|
| Dimensions: |
|
|
|
Outside Diameter |
0.500" +/- 0.025" |
|
Inside Diameter |
0.376", Nominal |
|
Wall Thickness |
0.062", Nominal |
|
Pitch |
0.563",Nominal |
|
Pitch Direction |
Right Hand |
Applicable Specifications
| DSSC CID A-A59602, Type 1, Class3 |
|
|
| UL CCN UZKX2 |
Environmental
| 1) EU Directive 2002/95/EC(RoHS): |
|
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
| 2) REACH Regulation (EC 1907/2006): |
|
This product does not contain any of the substances listed on the 2010 European Union's REACH Substance of Very High Concern (SVHC) candidate list in excess of 0.1% mass of the item. |
Properties
| Temperature Rating |
-20 to +80C |
|
| Tensile Strength |
1300 PSI |
Other
| Packaging |
|
| a) 100 FT |
|
| b) 25 FT |
|
| |
|
|
Packages may contain a Maximum of 3 lengths, 10 ft Minimum Length |
