Construction
| |
Diameters (In) |
| 1) Component 1 |
3 X 1 COND |
|
| a) Conductor |
14 (41/30) AWG BC |
0.074 |
| b) Insulation |
0.032" Wall, Nom. PVC |
0.135 |
| (1) Color(s) |
|
|
| Cond |
Color |
Cond |
Color |
Cond |
Color |
| 1 |
BLUE |
2 |
BROWN |
3 |
GREEN OR GREEN/YELLOW | |
| 2) Cable Assembly |
3 Components Cabled |
|
| a) Twists: |
4.4 Twists/foot (min) |
|
| 3) Jacket |
0.032" Wall, Nom.,PVC |
0.360 Min./0.395 Max. |
| a) Color(s) |
BLACK |
| b) Jacket Separator |
Tissue Tape, 25% Overlap, Min. |
|
| c) Print |
PER UL & CSA REQUIREMENTS
|
Applicable Specifications
| 1) UL |
SJT |
105°C / 300 VRMS |
| 2) CSA International |
FT2 |
|
| |
SJT |
105°C / 300 VRMS |
Environmental
| 1) EU Directive 2002/95/EC(RoHS): |
| | All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
| 2) REACH Regulation (EC 1907/2006): |
| | This product does not contain any of the substances listed on the 13 January 2010 European Union's REACH Substance of Very High Concern (SVHC) candidate list in excess of 0.1% mass of the item. |
Properties
| Physical & Mechanical Properties |
| 1) Temperature Range |
-20 to 105°C |
| 2) Bend Radius |
10X Cable Diameter |
| 3) Pull Tension |
97 Lbs, Maximum |
| Electrical Properties |
(For Engineering purposes only) |
| 1) Voltage Rating |
300 VRMS |
| 2) Capacitance |
32 pf/ft @1 kHz, Nominal Conductor to Conductor
|
| 3) Inductance |
0.19 µH/ft, Nominal
|
| 4) Conductor DCR |
2.6 Ω/1000ft @20°C, Nominal |
Other
|
Packaging
|
Flange x Traverse x Barrel (inches) |
| a) 250 FT | 12 x 10 x 5 Continuous length |
| b) 100 FT | 12 x 10 x 5 Continuous length |
| |
[Spool dimensions may vary slightly]
|
For consumer and industrial devices, business and communication machines, and medical and test equipment, our cords give you everything you need for reliable plugin power. All our cords are UL Listed and CSA Certified; we also offer a wide range of CENELEC-approved products for international use. Options include two- and three-conductor cords, shielded or unshielded, stripped and terminated cable ends, straight or retractile cords, and all common plug and receptacle configurations.

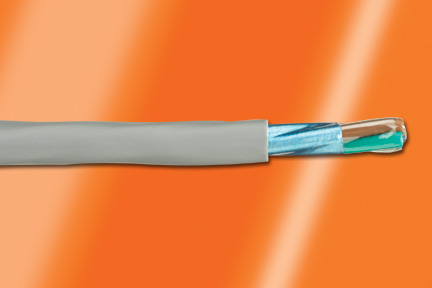

Manhattan Electrical Cables Brochure
Multiconductor Cable Conductor Color Codes Multipair Cable Conductor Color Codes
CERTIFICATE OF COMPLIANCE
To Whom It May Concern:
Alpha Wire Part Number: 1943/3
1943/3 , RoHS-Compliant Commencing With 2/1/2006 Production
This document certifies that the Alpha part numbers cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives . No Exemptions are required for RoHS Compliance on this item.
| Substance |
Maximum Control Value |
| Lead |
0.1% by weight (1000 ppm) |
| Mercury |
0.1% by weight (1000 ppm) |
| Cadmium |
0.01% by weight (100 ppm) |
| Hexavalent Chromium |
0.1% by weight (1000 ppm |
| Polybrominated Biphenyls (PBB) |
0.1% by weight (1000 ppm) |
| Polybrominated Diphenyl Ethers (PBDE) , |
|
| Including Deca-BDE |
0.1% by weight (1000 ppm) |
The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product .
Authorized Signatory for the Alpha Wire Company:
 |
|
| Dave Watson, Director of Engineering & QA |
9/2/2010 |
