A. Construction
1) Conductor
a) Material Tinned Copper, Per ASTM B 33
b) AWG, Stranding 28, 7/36
2) Insulation
a) Material Polyvinyl Chloride, Extruded
b) Nominal Wall Thickness 0.010
c) Min. Avg. Wall Thickness 0.009
d) Min. Point Thickness 0.007
e) Diameter 0.035 +/- 0.002
f) Color Gray, Red Polarity Stripe on Leading Edge
3) Assembly
a) Number of Conductors 10
b) Configuration Flat Cable
c) Center to Center Spacing 0.050 +/- 0.002

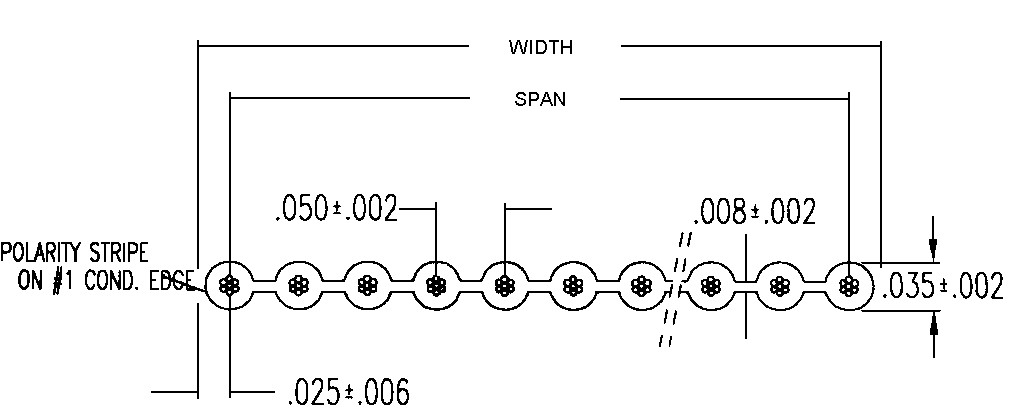

d) Width See Table 1
e) Span See Table 1
f) Print Legend ALPHA WIRE - N RU AWM STYLE 2651 300V 105C VW-1 CE ROHS
|
Part Number |
Conductors |
Width |
Span |
|
3580/10 |
10 |
.500 +/- .010 |
.450 +/- .008 |
B. Applicable Specifications
1) UL UL Standard 758, AWM Style 2651 VW-1
| 1) CE: EU Directive 2011/65/EU(RoHS2) | ||
| This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015. No exemptions are required for RoHS Compliance on this item. Refer to the RoHS Certificate of Compliance for more detail. | ||
| 2) REACH Regulation (EC 1907/2006) | ||
| This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration. | ||
| 3) California Proposition 65 | Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information. | |
1) Voltage Rating 300 Volts
2) Temperature Rating 105°C
3) Conductor Unbalance 5% max.
4) Voltage Withstand 2000 Volts RMS min.
5) Insulation Resistance 500 MΩ-1000ft. (min.)
6) Impedance 105 Ω, Nominal (G-S-G)
7) Capacitance 14.0 pf/ft., Nominal (G-S-G)
8) Propagation Delay 1.40 ns/ft., Nominal
1) Standard Package 100ft. (Max. 2 of lengths, 25 ft. min. length)
